Minecraft uses several different types of noise generators, specifically those making use of gradient noise, for the generation of terrain alongside other features.
Specifications[]
Noise generators can be defined by the following parameters:
- Octaves: The amount of different copies of this noise generator, each scaled down from the last by a factor of 2. Fewer octaves result in an unnatural appearance. More octaves added with lacunarity result in a rougher fractal appearance reminiscent of proper terrain.
- Frequency: It refers to the scale of the noise. A higher frequency value will result in more changes within a given range, leading to a more detailed or “rough” appearance. Conversely, a lower frequency value will result in fewer changes, leading to a smoother appearance. This is because the frequency determines how often the value of the noise function changes.
- Factor: A value the noise is multiplied with after processing (lacunarity). To make the set of values more or less extreme.
- Offset: A value added to the noise after processing. To shift the resulting set of values by this value.
These values are displayed and calculated differently in the code. Vanilla simply applies a "scale" value (frequency*(2^octaves)), defined as how much the noise generator increments per sampling (every four blocks).
Customization[]
Old Customized worlds (1.8-1.12)[]
Custom worlds were added in version 1.8, it was located in the list of world types at the very end.
In this type, it was possible to configure the biome, sea level height, stretching and other parameters allowing you to create any worlds not intended by the developers.
Custom worlds (1.16+)[]
Types of noise generators[]
Stratum colors are determined using only the first 48 bits of the 64-bit world seed in Java Edition. The strata repeat every 64 blocks on the Y-axis, and the elevation of a particular stratum can vary through a biome by as much as 4 blocks. Stratum elevations vary with respect to the X-axis only, neglecting the Z-axis.
Terrain noise generators[]
These are used for defining the shape of generated terrain itself.
A table of default/hardcoded settings, as well as values resulting from these, is as follows. Note that not all of these are used in vanilla, but are instead used by mods such as CubicWorldGen.
| Fundamental terrain noise generators (Overworld) | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Generator | Low noise | High noise | Selector noise | Depth noise | |||||
| Parameter | X | Y | Z | X | Y | Z | X | Z | |
| Offset | |||||||||
| Factor | |||||||||
| Octaves | |||||||||
| Frequency | |||||||||
| Period | |||||||||
| Increments per block | |||||||||
| Increments per sampling | |||||||||
| Expected 32-bit overflow distance | |||||||||
| Expected 64-bit overflow distance | |||||||||
Low noise[]
Low noise is one of the two main noise generators used for defining terrain shape. This noise generator, which uses Perlin noise, is used as a heightmap, which means it’s responsible for the basic shape of the terrain. It’s called “low” noise because it changes slowly and smoothly over distance, creating large portions of plain terrain, hills, or valleys.
High noise[]
This is effectively identical to low noise, but is only used when selector noise is above a given threshold value. It adds detail to the terrain changing rapidly over distance, creating rough, jagged surfaces.
Selector noise[]
Selector noise is a third important noise generator used for terrain generation. Selector noise, using Perlin noise, dictates which of either low noise or high noise is used for generating terrain at a given position - above 1 high noise is used, below 0 low noise is used, and values between 0-1 are linearly interpolated between the low and high noise values. Note that when Selector noise overflows, the terrain is divided within paterns, each alternating Low and High noise. That continues beyond the overflow for areas where the same noise is selected. This proves how the aformentioned two are used for.
Depth noise[]
A rather insignificant noise generator, this uses Perlin noise to make terrain slightly more nuanced in general. The possible values it can have are tightly clamped to a thin set of values. It is also only defined for the X and Z axes.
Other noise generators[]
These noise generators are oriented to the generation of other world features, such as decoration.
| Decorative noise generators (Overworld) | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Generator | Biome fill noise | Badlands noise pillar | Badlands clay band offset noise | Swamplands noise | Flower distribution noise | |||||||||
| Parameter | X | Z | X | Y | Z | X | Y | Z | X | Y | Z | X | Y | Z |
| Offset | ||||||||||||||
| Factor | ||||||||||||||
| Octaves | ||||||||||||||
| Frequency | ||||||||||||||
| Period | ||||||||||||||
| Increments per block | ||||||||||||||
| Increments per sampling | ||||||||||||||
| Expected 32-bit overflow distance | ||||||||||||||
| Expected 64-bit overflow distance | ||||||||||||||
Biome fill noise[]
Upon generation, a top layer block (e.g. dirt, sand) will be placed to a certain thickness to replace the bare stone heightmap. The thickness of this dirt relies on a noise generator in vanilla.
Biome distribution[]
Ocean biome variants are distributed using a Perlin noise function.
The Multi Noise Biome Source (used for the nether[verify]) also uses perlin noise.
Badlands clay band offset noise[]
Badlands noise pillar[]
Swamp noise[]
Swamps use a noise generator for two purposes: for the generation of marshy areas composing a mixture of water and grass blocks, and for the variation of the two different grass colors used.
Flower noise[]
The placement of flowers, most prominently in flower forest and meadow biomes but possibly also elsewhere, is controlled via a noise function. Flowers generated naturally will be in different positions from those grown via bone meal, and those grown via bone meal is not dependent on world seed.
Removed noise generators[]
These are no longer used in the current version of the game.
| Removed noise generators (Overworld) | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Generator | Infdev pre-0327 noise | Island carver noise | Scale noise | Sand noise | Gravel noise | Tree density noise | ||||||
| Parameter | X | Z | X | Z | X | Z | X | Z | X | Z | X | Z |
| Offset | ||||||||||||
| Factor | ||||||||||||
| Octaves | ||||||||||||
| Frequency | ||||||||||||
| Period | ||||||||||||
| Increments per block | ||||||||||||
| Increments per sampling | ||||||||||||
| Expected 32-bit overflow distance | ||||||||||||
| Expected 64-bit overflow distance | ||||||||||||
Major noise generation prior to Infdev 20100327[]
Floating island carver noise[]
During Indev, floating islands were produced by using an extra noise generator to carve out air into existing terrain.
Scale noise[]
A noise generator that appears to only have effects in hilly areas, with little to no impact on flat low-lying regions. Its effects are now handled by biomes rather than noise generation.
Tree density noise[]
A noise generator existed in Infdev which dictated the density of trees in the world. This was likely removed in Alpha v1.2.0 with the introduction of biomes although is yet to be confirmed, as a similar noise generator also seems to exist in 1.12.2.
Sand noise[]
A noise generator was used for generating the surface block used for low-altitude areas commonly characteristic of beaches. This noise generator would determine if a given area would use sand as the surface block or not. This was probably removed in Beta 1.8.
Gravel noise[]
Effectively identical to sand noise and used in very similar cases, this determined where gravel would generate in beach-like areas.
Biomes prior to Beta 1.8[]
Overflowing[]
Noise generators are capable of overflowing once hitting the integer limit for their given data type, producing spectacular results. The most notable of these are the Far Lands, resulting in noise generator overflows being referred to as types of Far Lands as a result.
In current versions of Java Edition, overflowing is not usually visible without either direct modification to terrain generation code or possibly via custom world generation.

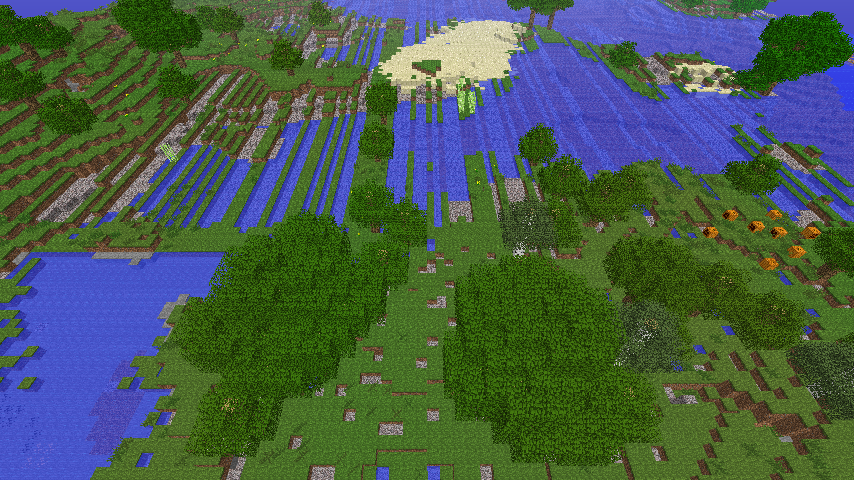

Low noise overflowing

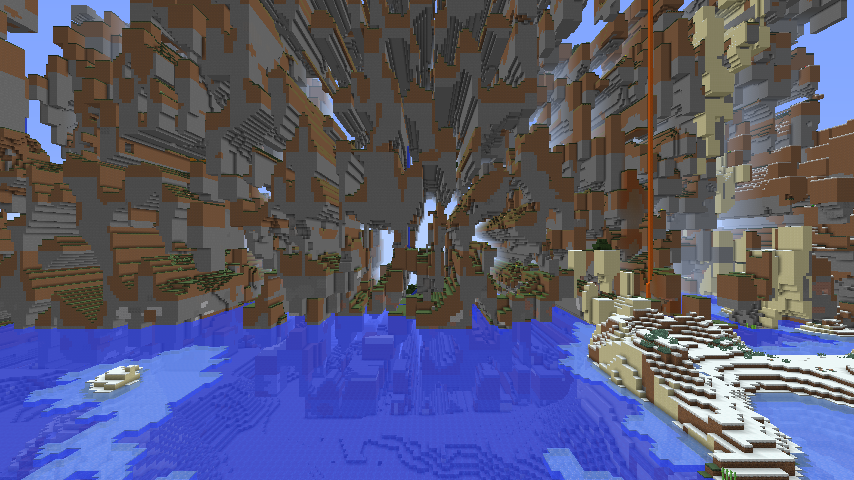

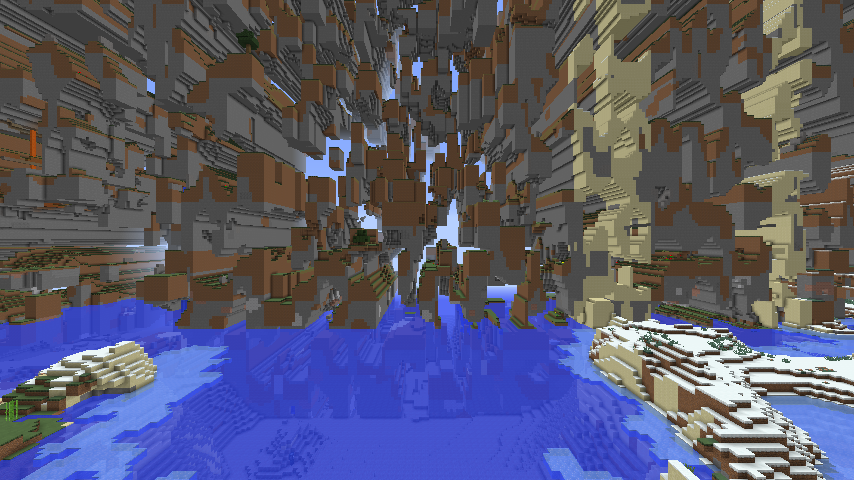

High noise overflowing

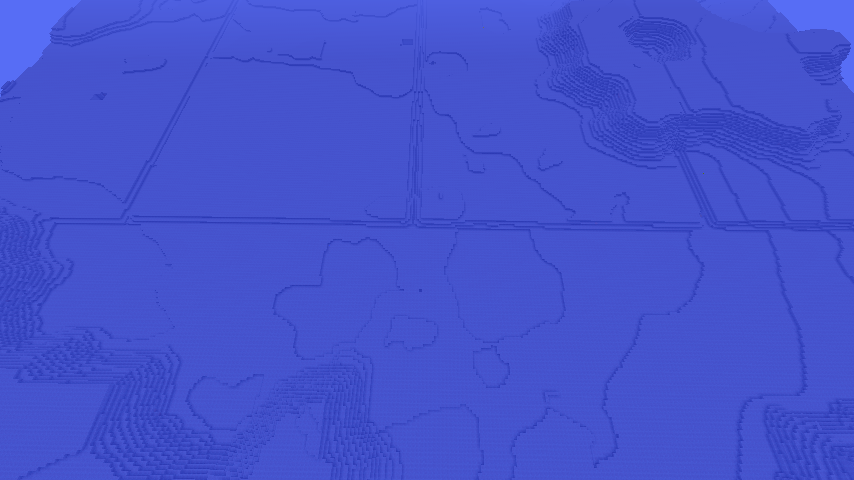

Selector noise overflowing; note how the noise pattern continues beyond the overflow for areas where the same noise is selected
Depth noise overflowing; note the incline (where it overflows) and the perpendicular rifts caused by it

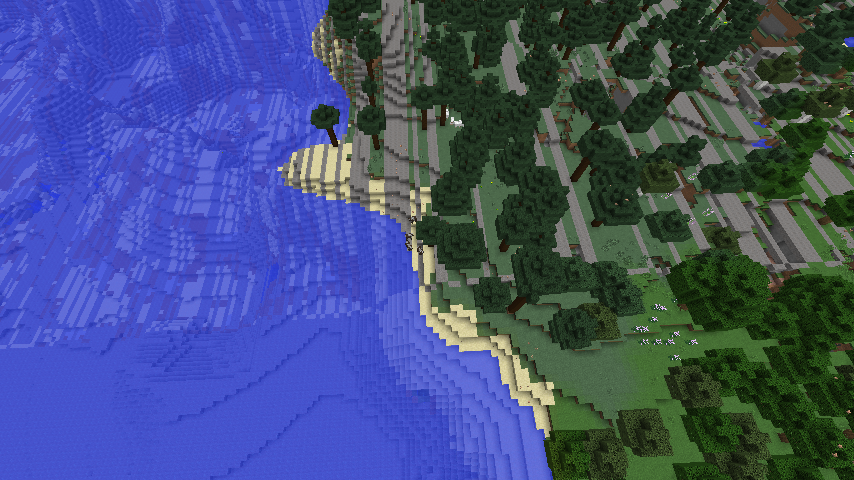

Biome fill noise overflowing

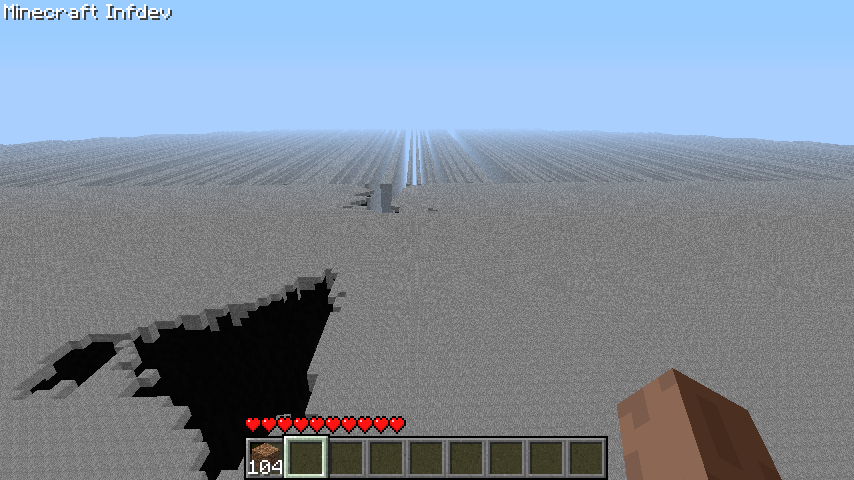

Pre-inf-20100327 terrain generation noise overflowing
Floating island carver noise overflowing

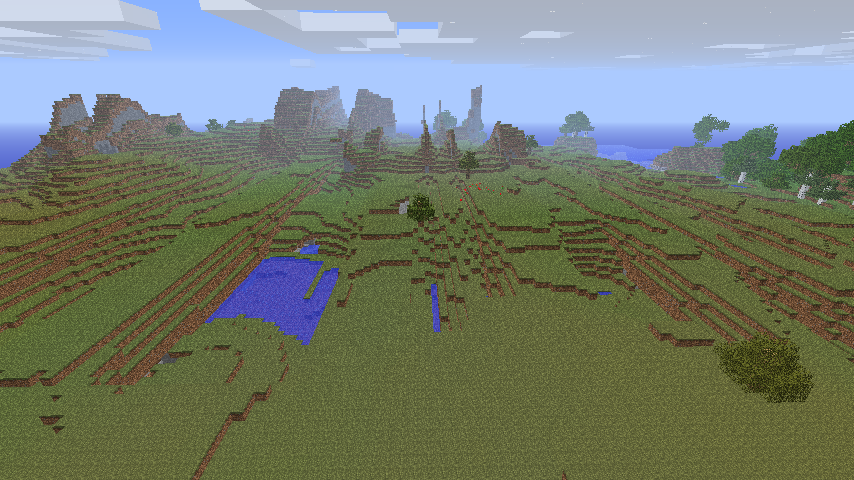

Scale noise overflowing

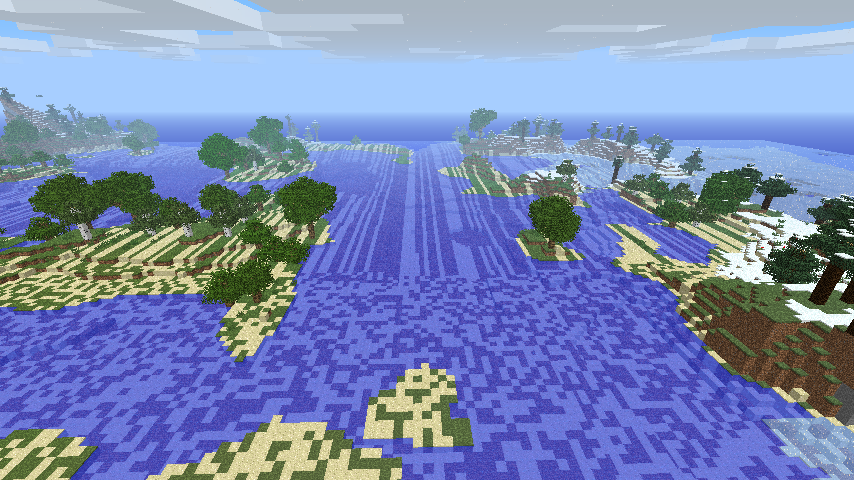

Sand noise overflowing
Gravel noise overflowing
