This article is about effects which arise due to precision loss. For effects which arise due to integer limits, see Java Edition hard limits.
Information icon.svg
This feature is exclusive to Java Edition.

In Java Edition, certain game mechanics start to break down as the player reaches the edges of the world.

Vanilla bounds (X/Y/Z ±0–29,999,984)[]

Entities[]

  • Projectiles seem to collide incorrectly with entities above 8,388,608 blocks[1]

Rendering[]

  • Rain and snow appear stretched out at large heights.[2]
  • Translucent blocks can sometimes occlude other translucent blocks behind them depending on player position.[3]
    • This is minor within vanilla's bounds, but becomes very pronounced at much higher distances if using mods, notably over icy areas. Can also affect certain blocks by themselves like slime blocks and honey blocks at even more extreme distances.

Sounds[]

  • Many break down slightly[4]
    • Becomes considerably more pronounced beyond vanilla bounds at 228 (268 million blocks)
  • The vibration feature for sculk sensors is created at the wrong position[5]

World[]

  • Temperature distribution breaks at high distances,[6] which can be easily noticed with the creation of snow and ice in biomes such as Mountains appearing blockier due to both world generation and subsequent regeneration from snowfall or freezing
    • As it is set to 60,000,000 by default, which is greater than 33,554,432, it can only be set to a multiple of four in areas near its default position.

Beyond the vanilla world boundary (X/Z ±29,999,984–2,147,483,647)[]

Paper JE2 BE2.png
The contents of this section are not supported by Mojang Studios or the Minecraft Wiki.

Horizontal distances far beyond 30 million blocks cannot be reached without game modification. Mods such as the FarLands mod can be used to move the world border further out to make these regions accessible. This lists effects that are completely exclusive to these distances and cannot be seen in any form in vanilla.

32-bit precision loss[]

Rendering[]

  • Rain and snow fade at certain horizontal distances.

Unknown (possibly 64-bit?)[]

Entities[]

  • The player can easily get stuck in the positive sides of blocks after 230 (1.073 billion blocks).

Beyond the 32-bit limit (X/Z ±2,147,483,648-9,223,372,036,854,775,807)[]

Paper JE2 BE2.png
The contents of this section are not supported by Mojang Studios or the Minecraft Wiki.
This section is missing information about
  • Theoretical limits beyond 2,147,483,647 in modern versions
  • Stripe lands at 18,014,398,509,481,984 and beyond.
Please expand the section to include this information. Further details may exist on the talk page.

The standard format for doubles dedicates 52 bits to the fraction, as opposed to the 23 bits used by the 32-bit float. As a result, beyond 2^30 or 1,073,741,824 blocks, the player would only be off by (2^30)/(2^52) = 1/2^22 = 1/4194304 blocks, which is absolutely indistinguishable from the distance back at spawn. This is around equivalent to the precision of 2 to 4 blocks out on Bedrock Edition.

Each doubling, however, will indeed half the precision used, up to a point where every single element of the game ends up breaking down.

64-bit precision loss[]

Minecraft: Java Edition uses 64-bit floating point precision for entity positions and other calculations. Several mechanics which do not break down within vanilla or even slightly modded bounds break down at very high distances similarly to Bedrock Edition.

Entity movement[]

On the Y axis:

  • Flying upwards or downwards in Creative becomes impossible after 2^52 blocks.[7]
  • Falling downwards becomes impossible after 2^55 blocks.[7]

Stripe Lands[]

As 52 bits are dedicated to the fraction in the double format rather than 23 in the single format, after 2^53 or 9,007,199,254,740,992 blocks out, precision breaks to consider only every second block, and so on. The rendering breaks down in an effectively identical manner to Bedrock Edition and yields the famous Stripe Lands as a result.

Fluids break down differently from blocks; while block rendering breaks down to form the usual stripes, fluids will instead stretch to the size of the precision loss, with the initiation of the Stripe Lands causing each liquid to become two blocks long, then four at the next doubling, and so on.

Analysis[]

Due to precision loss becoming more extreme at greater distances, features affected at it will behave different depending on how far out they are.

Rain/snow rendering[]

First affected bracket:
First affected version: Unspecified Classic
Last affected version: Indev 2010-02-14 2

Second affected bracket:
First affected version: Alpha v1.0.4
Last affected version: Alpha v1.1.2_01

Third affected bracket:
First affected version: Beta 1.6.5
Still affects the current release (1.17.1) and snapshot (1.17.1-rc2)
Suspected to affect as far back as Beta 1.5, but cannot be reasonably tested due to crashes

16,384 - 262,143 blocks

Beyond this point on the Y axis one can start to see the first signs of snow/rain jittering. Up to 65,535 blocks. this can only be reasonably seen with snowflakes with a mainly horizontal trajectory, as vertical travelling snowflakes are moving at a speed where travel still appears mostly smooth. Beyond 65,536 and especially 131,072 blocks, the effect becomes very obvious for almost all snow.

262,144+ blocks

Above 262,144 blocks, the first signs of geometrical distortion in the snow itself can be seen - very little non-misshapen snow is present beyond here, and most of it has transformed into either lone rectangles, or the odd paired rectangles similar in shape to a pause button.

Deformity progresses after every power of two surpassed from this point. Past 16,777,216 blocks, snow becomes a near unrecognisable pattern of suspended vertical lines.

Translucent rendering breakdown[]

First affected version: 13w41a
Still affects the current release (1.17.1) and snapshot (1.17.1-rc2)

8,388,608 - 16,777,215 blocks

The effects of this can first be seen after this point. The preferred method of testing this involves stacking two translucent blocks, such as two different colors of stained glass, in a square shape, and then walking up against this square to slow movement. When crossing from one block into another, the top face of the bottom block should not render at all until a certain distance is covered, at which point it should pop into view as expected.

16,777,216 - 33,554,431 blocks

The buggy effect's precision is now halved, allowing for the tops of two blocks at a time to appear periodically invisible.

33,554,432+ blocks

The effect's intensity will again double for every power of two crossed beyond this point. It also becomes very obvious in natural generation at extreme distances, specifically in cold areas; as ice and water are both translucent blocks and are intended to be visible through each other, viewing them when at such far distances from the origin will make very exaggerated versions of this effect obvious.

Sound positioning errors[]

This section of the article is empty.
You can help by adding to it.

Becomes very severe beyond 2^28 blocks, where many sounds are simply no longer audible at all.

Sculk vibration positioning errors[]

First affected version: 20w49a
Still affects the current release (1.17.1) and snapshot (1.17.1-rc2)

4,194,304 - 8,388,607 blocks

Precision will be a factor of two times as accurate for every power of two crossed before this point. Beyond 4,194,304 blocks, vibrations will only be able to come from one of three lines on a block - one for each edge, and another through the center. Past this on both axes, precision loss will allow vibrations to only originate from nine points on a block: the center, the middle of each of the four edges, and the four corners.

8,388,608 - 16,777,215 blocks

After this point, precision will be half as precise again. Vibrations will lose the ability to come from the center of blocks, being relegated to one of two edges, or, if beyond this on both axes, one of the four corners.

16,777,216 - 33,554,431 blocks

Beyond 16,777,216 blocks, vibrations can come from completely separate positions than the actual source. If a button is placed at (4x+1,4z+1), the vibration will first appear at the center of the four blocks directly northwest of it. However, this does not appear to allow the sculk sensor to detect vibrations from any farther away than it should.

Temperature distribution breakdown[]

First affected version: 16w02a
Still affects the current release (1.17.1) and snapshot (1.17.1-rc2)

16,777,216 - 33,554,431 blocks

As snowfall/rainfall is handled on a per-block basis, the effects of precision loss here can only be seen once precision itself can no longer represent blocks (integers) individually.

Beyond this point, while perhaps not immediately obvious (especially due to the vertical variation in almost all biomes where this effect can be seen), the patterns resulting from snow landing on surfaces become much more angular than before, being commonly composed of large rectangles, thin lines and lone dots which are either filled with snow or have it completely absent. This is similarly true of water, with ice corresponding to cold blocks and water to warmer blocks.

As temperature varies with height, in order to properly see the effects of this, it is strongly recommended to build a flat plane for snow to accumulate on instead, or to generate a Superflat world with snow/ice set to generate with it as it would naturally. A modified Tunneler's Dream preset set to generate 94 layers of black concrete (Looking At Block should say 93 for the top concrete layer) is ideal for this case, providing a roughly 50/50 density of snowy and clear blocks, with black providing maximum contrast.

Teleporting to 16,777,216 on both axes should show four quadrants - one with normal looking snow/ice generation, and three with far more angular features due to the precision loss exceeding a full block. During times of precipitation, it can be seen that the blocky patterns of snow/ice match up with the weather directly above - snowy areas have snowfall where areas with no snow cover have rain. This is obviously true anywhere and is unrelated to precision loss, but (especially in the case of already-generated worlds) this can be used to prove that the precision loss lies with temperature calculation, and is not merely a world generation issue disjoint from it.

History[]

Note: This history section is sorted by when each case was fixed, shaded areas in gray in the introduction/fix columns are non-actual versions or testing for versions needed, and shaded areas in pink indicate distance effects affecting in the development versions only.

High-distance precision loss bugs[]

This section is missing information about
  • Piston sounds lost precision somewhat at high distances which can be detected by ear - from my memory it affects 1.4 but was fixed in or before 1.6
  • Further research is needed into mob spawning and pathfinding precision loss and its overall history - will likely require direct analysis of spawning/pathfinding code. Pathfinding was definitely broken in 19w08b
  • Test item frame drop location throughout history
  • MC-205680
  • MC-221892.
Please expand the section to include this information. Further details may exist on the talk page.
From Until Change type Error Example Notes
Likely Classic Indev 20100218 Feature removed
(with regression)
Rain appears stretched out at extreme heights. Weather rendering precision loss 1.png → Go to section
Likely from the start Infdev 20100313[8] Fixed Entities and particles use 32-bit floats for position, rather than doubles. → Go to section
Classic or Indev Infdev 20100313[8] Fixed The outline box of blocks shakes and jitters considerably at high distances. Outline box rendering precision loss.png → Go to section
Infdev 20100227-1 Infdev 20100313[8] Fixed World rendering loses precision in such a way that chunks become detached from each other. Chunk rendering precision loss 1.png → Go to section
Infdev 20100227-1 Infdev 20100313[8] Fixed The world periodically stops rendering entirely when the player is at far distances. May have technically occurred in earlier game versions, but the world stopped rendering after 2560 blocks out anyway, so it would never have manifested anyway
Infdev 20100313 Infdev 20100316 Fixed Flowers, mushrooms, torches, saplings and wheat lose precision and appear 2D at high distances. 313 far items.png → Go to section
Indev 20100128 Alpha v1.0.1 Feature
removed
Gears appear visually stretched at high distances. Gear model precision loss.png → Go to section
Infdev 20100325 [needs in-game testing] Feature
removed
Particles generated by stationary water blocks lose precision. Water precision loss.png
[needs in-game testing] [needs in-game testing] Feature removed
(with regression)
Rain particles in third person mode lose precision at high coordinates. Rain particle grid.png The appearance of these particles in the first place is a bug, likely due to remaining F5 rain code.
Alpha v1.0.4 Alpha v1.2.0 Feature removed
(with regression)
Snow in worlds with winter mode appears stretched at high heights. Weather rendering precision loss 2.png → Go to section
Alpha v1.0.1 Beta 1.5 Changed Redstone wire appears bugged at high distances when traveling up a block. Vertical redstone model precision loss 1.png → Go to section
Infdev 20100607 Beta 1.8
(pre)
Fixed Ladders appear visually stretched at high distances. Ladder model precision loss.png → Go to section
Infdev 20100616 Beta 1.8
(pre)
Fixed Water and lava side textures render incorrectly at high distances. Fluid model precision loss.png → Go to section
Infdev 20100618 Beta 1.8
(pre)
Fixed Rails appear visually stretched at high distances. Rail model precision loss.png → Go to section
Infdev 20100624 Beta 1.8
(pre)
Fixed The terrain rendering appears offset and loses precision at high coordinates, giving way to the famous jitter of the Far Lands. Farlandsblockmovement.gif → Go to section
Beta 1.3 Beta 1.8
(pre)
Fixed The top faces of redstone repeaters lose precision at high coordinates. Redstone repeater model precision loss.png → Go to section
Beta 1.5 Beta 1.8
(pre)
Fixed Powered rails and detector rails appear visually stretched at high distances. Redstone rail model precision loss.png → Go to section
Beta 1.5 Beta 1.8
(pre)
Fixed Redstone wire appears offset from its base block, although otherwise correctly sized, when traveling up a block. Vertical redstone model precision loss 2.png → Go to section
1.0.0
(Beta 1.9-pre4)
1.3.1
(12w18a)
Feature removed
(with regression)
Smoke from adding an eye of ender to an end portal frame loses precision. End portal frame precision error old.png "Fixed" by them not showing up at all anymore. Later regression in 19w14a to 1.16-pre1 when they show up again.
1.4.2
(12w34a)
1.4.4
(1.4.3)
Fixed The wall collision box loses precision. Wall collision box precision loss.png → Go to section
Infdev 20100618 1.4.6
(12w49a)
Fixed Gravity-affected blocks at high distances can duplicate blocks and allow for infinite items, with natural configurations potentially autonomously generating thousands of item entities.
1.0.0
(Beta 1.9-pre2)
1.5
(13w06a)
Fixed Fence and nether brick fence collision boxes are broken at high distances. Fence collision box precision loss.png → Go to section
[check the code] [check the code] Fixed Chunks may not render at all even if clearly in view. Close chunks not rendering.png
Likely Indev 1.7.2
(13w38a)
Changed Paintings are placed at the incorrect positions when far from the origin. Painting bug pre 38a.png
1.4.2
(12w34a)
1.7.2
(13w38a)[9]
Changed Item frame rendering breaks at high coordinates, with the frames following the player's position somewhat. Item frame bug pre 38a.png
1.7.2
(13w38a)
1.7.2
(13w41a)[10]
Changed Item frame rendering is further broken at high coordinates, still following the player's position to an extent but also erratically changing position depending on the camera angle. 1.7 dev frame.png Potentially fixed due to the fix for MC-31619
1.7.2
(13w38a)
1.7.2
(13w41a)[10]
Changed Painting rendering breaks at high coordinates, now following the player's position to an extent and also erratically changing position depending on the camera angle. 1.7 dev painting.png
1.7.2
(13w38a)
1.7.2
(13w41a)[10]
Fixed Entities, tile entities, translucent blocks and the wireframe hitbox seem desynced from the terrain itself, especially pronounced with View Bobbing active. Hitbox too big.png Entities, block entities such as chests and signs, the wireframe hitbox shown around blocks, and ice and water are all in sync with each other. These become desynced from the terrain. The terrain is in sync with itself. The objects desynced from terrain become very jittery on some hardware.
Likely Indev 1.8
(14w02a)
Fixed
(with regression)
Lava ember particles lose precision. Lava particle precision loss old.png There exists a later regression from 18w10c to 1.16-pre1.
Beta 1.7 1.8
(14w02a)
Fixed The arms of pistons lose precision, causing them to stretch or even escape the block itself if far enough. Piston model precision loss.png → Go to section
Beta 1.8
(pre1)
1.8
(14w02a)
Fixed
(with regression)
Underwater particles lose precision. Water particle error early.png There exists a later regression from 18w10c to 1.15pre4.
1.0.0
(Beta 1.9-pre1)
1.8
(14w02a)
Fixed Water dripping particles lose precision. Water drip precision loss.png
1.0.0
(Beta 1.9-pre1)
1.8
(14w02a)
Fixed Lava dripping particles lose precision. Lava drip precision loss.png
1.0.0
(Beta 1.9-pre3)
1.8
(14w02a)
Fixed The inside faces of cauldrons lose precision, and can escape the block itself if far enough. Cauldron model precision loss.png → Go to section
1.3.1
(12w22a)
1.8
(14w02a)
Fixed The tripwire model loses precision, causing it to disappear or stretch when far enough. Tripwire model precision loss.png → Go to section
1.3.1
(12w22a)
1.8
(14w02a)
Fixed The tripwire hook model when connected to tripwire loses precision. Tripwire hook broken type 2.png → Go to section
1.4.2
(12w34a)
1.8
(14w02a)
Fixed The inside faces of flower pots lose precision, and can escape the block itself if far enough. Flower pot model precision loss.png → Go to section
1.5
(13w01a)
1.8
(14w02a)
Fixed The inside faces of hoppers lose precision, and can escape the block itself if far enough. Hopper model precision loss.png → Go to section
1.0.0
(Beta 1.9-pre1)
1.8
(14w10a)
Fixed Lily pads appear glitched at 8388608 blocks out and are invisible from 8388609 blocks onward. Lily pad model precision loss.png
Likely Indev 1.8
(14w17a)
Fixed Fire's model (on a wall) breaks at high distances and can z-fight with its base or become very outstretched from it. Fire model precision loss.png → Go to section
Alpha v1.0.1 1.8
(14w17a)
Fixed Redstone wire appears bugged at high distances. Redstone model precision loss.png → Go to section
Infdev 20100618 1.8
(14w25a)
Fixed Falling block spawning at high distances snaps to the corners of blocks. Falling block creation precision loss.png
Likely Indev 1.8
(14w28a)
Fixed When breaking a container, the contained items are dropped in the wrong area. Furnace drop precision loss.png
1.8
(14w30a)
1.8
(14w30c)[11]
Fixed World rendering is now extremely broken at high distances, with chunks vibrating and becoming detached. Chunk rendering precision loss 2.png → Go to section
Indev 20100125-2 1.8
(14w32a)[12]
Fixed Torch flame particles are formed at the wrong positions at high distances. Torch precision loss.png Wall torch particles are offset further after losing precision, to account for wall torches not being centered on the block.
Indev 20100125-2 1.8
(14w32a)[12]
Fixed Fire smoke particles are formed at the wrong positions at high distances. Fire precision loss.png
Indev 20100219 1.8
(14w32a)[12]
Fixed Furnace flame particles are formed at the wrong positions at high distances. Furnace precision loss.png
Infdev 20100618 1.8
(14w32a)
Fixed Sand, gravel, dragon eggs and anvils can become suspended in midair at high distances. Physics precision loss.png Upon recieving a block update, they can create an entity for some frames before reverting to block form.
Infdev 20100624 1.8
(14w32a)
Fixed Minecarts are placed incorrectly at high distances. In some cases (usually stretches of rail), the minecart itself renders in the correct position but its shadow and rider are offset. Minecart precision loss.png
Beta 1.8
(pre1)
1.8
(14w34c)
Feature
removed
Void particles are formed incorrectly at high distances. Void particle precision loss.png "Fixed" by removing them entirely.
1.7.2
(13w41a)
1.8
(pre2)
Fixed Paintings are placed at the incorrect positions when far from the origin. Painting precision loss.png
1.4.2? ([needs in-game testing]) 1.8
(pre2)[13]
Fixed There existed high-distance bugs with item frames clipping and not being interactable. Frame clipping.png
Beta 1.5 1.8.2
(pre5)
Fixed
(with regression)
Rain particles lose precision. Rain precision loss old.png There exists a later regression from 20w06a to 1.16-pre1.
Beta 1.8
(pre)
1.8.2
(pre5)[14]
Fixed Rain rendering loses precision at high horizontal distances, becoming visible only sometimes beyond 2^23 and becoming completely invisible at 2^24. High dist rain.png
Beta 1.8
(pre1)
1.8.2
(pre5)
Fixed
(with regression)
Smoke particles from rain hitting lava lose precision. Lava rain precision loss old.png There exists a later regression from 20w06a to 1.16-pre1.
Alpha v1.0.1 1.8.2
(pre5)[15]
Fixed Redstone torch particles lose precision. Redstone torch precision loss.png
1.0.0
(Beta 1.9-pre6)
1.9
(15w31a)
Fixed End crystals generated atop obsidian pillars would be offset at high distances. 18CornerEnd.png Impossible to witness in vanilla, as End terrain does not generate this far out. However, with mods (such as those that re-enable the Far Lands), all End terrain would spawn obsidian pillars, allowing for this to be seen.
Potentially an early manifestation of MC-92901
1.9
(15w31a)
1.9
(15w33a)
Fixed The end gateway block's effect breaks when far from the origin. End gateway precision loss.png
Alpha v1.0.1 1.9
(15w37a)
Fixed Pressure plates detect activating entities wrongly when far from the origin. Pressure plate precision loss.png Some pressure plates only recognize the player when stepping on a precision loss point, and others can preserve a signal even when the player is off them.
Alpha v1.0.11 1.9
(15w38a)
Fixed The cactus collision box loses precision. Cactus collision box precision loss.png → Go to section
Beta 1.2 1.9
(15w38a)
Fixed The cake collision box loses precision. Cake collision box precision loss.png → Go to section
Beta 1.2 1.9
(15w38a)
Fixed The cake outline box loses precision. Cake outline box precision loss.png → Go to section
1.1
(12w01a)
1.9
(15w38a)
Fixed The fence gate collision box loses precision. Fence gate collision box precision loss.png → Go to section
Alpha v1.0.11 1.9
(15w49a)
Fixed The cactus outline box loses precision. Cactus outline box precision loss.png → Go to section
1.8
(14w32a)
1.9
(15w49a)
Changed Falling block rendering at high distances snaps to the corners of blocks. Falling block older precision loss.png
Alpha v1.0.6 1.9
(16w04a)
Fixed Boats are placed at the wrong position when far enough. Boat precision loss.png Fix potentially related to MC-90011
1.6
(13w16a)
1.9
(16w06a)
Fixed Lead knots are placed at the wrong position when far enough. Lead position precision loss.png
1.4.2
(12w34a)
1.9
(16w06a)
Fixed Item frames are placed at the incorrect positions when far from the origin. Item frame position precision loss 1.7.png Hard to notice prior to 13w41a due to them not appearing at their actual position. Manifestation may differ across versions.
Beta 1.7? [needs in-game testing] 1.11
(16w40a)[16]
Fixed Piston, command block and other blocks which can be placed in 6 directions approximate the player's position using a precision-losing float. Placement precision loss.png
Beta 1.7 1.11
(16w40a)[17]
Fixed The extension and contraction animations of pistons act oddly, somewhat following the player around at high distances. Piston offset bug.png → Go to section
1.0.0
(Beta 1.9-pre3)
1.11
(16w40a)

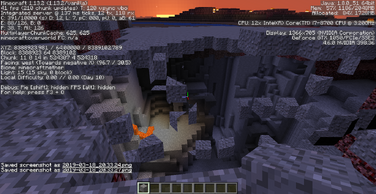

Fixed The rendering of the end portal block breaks and jitters intensely at high distances, giving way to complete blackness. Black portal block.png In this version, the effect was made to remain static in respect to the screen, as opposed to moving with the player, a change made to end gateway blocks early in their development which also fixed high distance bugs.
[needs in-game testing] [needs in-game testing] Fixed Terrain features seem to periodically "avoid" certain stripes of land at high distances on world generation.
Alpha v1.0.2 1.13
(17w47a)
Fixed Redstone ore particles are formed wrongly when far from the origin. Redstone ore precision loss.png
1.9
(15w44a)
1.13
(17w47a)[18]
Fixed End crystals were placed at the wrong position when far from the origin. End crystal precision loss.png
1.4.6
(12w49a)
1.14
(19w03a)
Fixed Firework rockets are placed at the wrong positions when far from the origin. Firework precision loss.png
Beta 1.3 1.14
(19w08a)
Fixed Beds place the player at their edge when used far from the origin, and drop them off at a precision-losing point when far as well. Bed precision loss.png
1.9
(15w49a)
1.15
(19w39a)[19]
Fixed Falling blocks render very oddly at high distances, constantly jumping around in response to camera movement, and jitter when falling even with a still camera. Falling block precision loss.png → Go to section
Likely Indev 1.15
(pre1)
Feature
removed
Black smoke particles from TNT exploding are generated at the wrong place at far distances. Explosion precision loss.png "Fixed" by removing these particles entirely, see MC-165991
Likely Indev 1.15
(pre1)
Feature
removed
White smoke particles from TNT exploding are generated at the wrong place at far distances. White Explosion precision loss.png "Fixed" by removing these particles entirely, see MC-165991
Likely Indev 1.15
(pre4)[20]
Fixed When lit manually, TNT is generated at the wrong place at far distances. TNT offset bug.png
Infdev 20100625-2 1.15
(pre4)
Fixed Spawner particles lose precision. Spawner precision loss.png
Alpha v1.2.0 1.15
(pre4)
Fixed The particles of the nether portal block form at the wrong place high distances. Nether portal precision loss.png
1.0.0
(Beta 1.9-pre1)
1.15
(pre4)
Fixed Mycelium particles lose precision. Mycelium precision loss.png
1.0.0
(Beta 1.9-pre3)
1.15
(pre4)
Fixed The particles of the end portal block form at the wrong place high distances. End portal particle precision loss.png
1.0.0
(Beta 1.9-pre3)
1.15
(pre4)
Fixed Brewing stand particles lose precision. Brewing stand precision loss.png
1.0.0
(Beta 1.9-pre3)
1.15
(pre4)[21]
Fixed The book of the enchanting table faces the wrong direction when far enough from the origin. Enchantment table angle precision loss.png
1.5
(13w06a)
1.15
(pre4)
Fixed Particles from minecart with spawners lose precision. Spawner cart precision loss.png
1.7.2
(13w36a)
1.15
(pre4)
Fixed Particles from falling from a height lose precision. Fall precision loss.png
1.7.2
(13w36a)
1.15
(pre4)[22]
Fixed Particles from fishing lose precision. Fishing precision loss.png
1.8
(14w04a)
1.15
(pre4)
Fixed The /particle command generates particles at the wrong place at far distances. Particle command precision loss.png
1.8
(14w06a)
1.15
(pre4)
Fixed Barrier particles lose precision. Barrier precision loss.png
1.8
(14w33a)
1.15
(pre4)
Fixed Particles from breaking an armor stand lose precision. Armor stand precision loss.png
1.9
(15w31a)
1.15
(pre4)[23]
Fixed End gateway particles move to the wrong place. End gateway particle precision loss.png
1.9
(15w34b)
1.15
(pre4)
Fixed Dark heart particles from hurting mobs lose precision. Damage heart precision loss.png
1.9
(15w34c)
1.15
(pre4)
Fixed Particles from sweep attacks lose precision. Sweep attack precision loss.png
1.10
(16w20a)
1.15
(pre4)
Fixed The particles of suspended gravity affected blocks form at the wrong place at high distances. Physics particle precision loss.png
1.13
(18w07a)
1.15
(pre4)[24]
Fixed Squid ink particles lose precision. Squid precision loss.png
1.13
(18w10c)
1.15
(pre4)
Fixed Underwater particles lose precision. Underwater precision loss.png
1.13
(18w15a)
1.15
(pre4)[25]
Fixed Conduit particles move to the wrong place. Conduit precision loss.png
1.5
(13w04a)
1.16
(20w12a)[26]
Fixed Bone meal particles lose precision. Bone meal precision loss.png
[needs in-game testing] 1.16
(pre1)[27]
Fixed Mob spawning breaks at high distances. Spawning and pathfinding precision loss.png May be related to a bug that caused naturally spawned passive mobs to suffocate in blocks when generated at high distances.[28] Example shows before and after 268435456.
Likely Indev 1.16
(pre1)[29]
Fixed When set off by another explosion, TNT is generated at the wrong place at far distances. Detonation offset.png
Beta 1.3 1.16
(pre1)[30]
Fixed Red smoke from redstone repeaters loses precision. Repeater precision error.png The smoke is offset further after precision loss depending on the repeater's delay.
Beta 1.5 1.16
(pre1)[31]
Fixed Detector rails do not detect the presence of minecarts properly. Detector rail precision loss.png
1.0.0
(Beta 1.9-pre3)
1.16
(pre1)[32]
Fixed The book of the enchanting table sometimes does not open at all when far enough from the origin. Enchantment table presence precision loss.png
1.3.1
(12w22a)
1.16
(pre1)[33]
Fixed Dripping particles from leaves lose precision. Leaves precision error.png
1.5
(13w02a)
1.16
(pre1)[34]
Fixed Minecarts with chests that generate in mineshafts appear at the wrong locations at high distances. Minecart generation precision loss.png
1.13
(18w10c)
1.16
(pre1)[35]
Fixed Embers from lava lose precision. Lava precision error.png
1.14
(19w03a)
1.16
(pre1)[36]
Fixed Embers from campfires lose precision. Campfire precision error.png
1.14
(19w14a)
1.16
(pre1)[37]
Fixed Smoke from adding an eye of ender to an end portal frame loses precision. End portal frame precision error.png due to fix for MC-10369
1.16
(20w06a)
1.16
(pre1)[38]
Fixed Rain particles lose precision. New rain precision error.png Likely from fix to MC-131770
1.16
(20w06a)
1.16
(pre1)[39]
Fixed Smoke particles from rain hitting lava lose precision. Rain lava precision error.png resurfaced due to MC-164158 and above ticket
1.16
(20w06a)
1.16
(pre1)[40]
Fixed Smoke particles from rain hitting campfires lose precision. Campfire smoke precision loss.png Likely related to the very similar lava case
1.16
(20w06a)
1.16
(pre1)[41]
Fixed Ambient particles from the crimson forest, soul sand valley and warped forest lose precision. Warped forest precision loss.png The example to the left was taken at >2^30 blocks, as the effect, while reproducible, is hard to demonstrate in an image within vanilla bounds.
[needs in-game testing] 1.16
(pre1)[42]
Fixed Pathfinding of mobs breaks at high distances causing mobs to rotate in a humorous fashion.
1.16
(20w15a)
1.16
(pre1)[43]
Fixed Smoke particles from rain hitting soul campfires lose precision. Soul campfire smoke precision loss.png
1.16
(20w15a)
1.16
(pre1)[44]
Fixed Ambient particles from the basalt deltas lose precision. Basalt deltas precision loss.png
1.16
(20w19a)
1.16
(pre1)[45]
Fixed Particles from active redstone wire lose precision. Redstone dust precision error.png From the fix to MC-181566
Infdev 20100325 1.16.2
(20w28a)[46]
Fixed Blobs generate more blocky at high distances. Ore gen precision loss.png Between 67,108,864 and 134217728 blocks, this bug will cause the game to crash, as blobs end up being placed in adjacent chunks, resulting in a huge chain reaction of chunk loading.[47]
1.8
(14w17a)
1.17

(21w17a)

Fixed The world border's radius is controlled by a float, making many world border sizes inaccessible.
[check the code] Current[4] Current Sounds can come from the wrong places at high distances. → Go to section
Beta 1.6.5 Current[2] Current Rain and snow appear stretched when the player is high up or low down enough. Weather rendering precision loss 3.png → Go to section
1.7.2
(13w41a)
Current[3] Current Translucent blocks (or translucent elements such as different parts of slime blocks and honey blocks) can sometimes erroneously stop different translucent blocks/elements behind them from rendering, likely due to it assuming they wouldn't be seen from the player's precision-deficient position. Translucent rendering precision loss.png → Go to section
1.9
(16w02a)
Current[6] Current Temperature is blockier at high distances, resulting in blockier snow and ice generation and more. Precision loss snow.png → Go to section
1.17
(20w49a)
Current[5] Current
(unused until 1.18)
Vibrations for sculk sensors are created at the wrong positions

High-time precision loss bugs[]

This section is missing information about Was MC-227557 a time issue?.
Please expand the section to include this information. Further details may exist on the talk page.

While not strictly distance effects, these similarly concern precision loss issues with float casting that happen due to excessive time values, regardless of spatial position.

Introduced Fixed/changed Error Example Notes
1.4.2
(12w38a)
1.8.1
(pre3)[48]
The beacon beam becomes more jittery in rotation, eventually stopping rotating and its texture becoming visually broken at high time values. Ancient beacon.png
1.8
(14w30a)
1.15
(19w35a)[49]
Banners stop moving in the wind after a certain amount of time. Frozen banner.png The value is somewhere between 3m and 3.5m.
1.15
(19w38a)
1.15
(pre3)[49]
Banners stop moving in the wind after a certain amount of time. Frozen banner again.png

Historical effect analysis[]

Model issues[]

Redstone wire[]

First affected version: Alpha v1.0.1
Last affected version: 14w11b
Notable changes in Beta 1.5, Beta 1.8 Pre-release and 14w02a

262,144 - 1,048,575 blocks

Redstone 262144 vertical.png

Between Alpha v1.0.1 and Beta 1.7.3 inclusive, the first distortions of redstone wire can be seen beyond 262,144 blocks. After this point, if redstone wire climbs a block face perpendicular to the direction 262,144 blocks are exceeded on, it will appear in the same plane as that block face, resulting in major z-fighting. This effect remains like this until 16,777,216 blocks, where error exceeds a full block.

In Beta 1.8 Pre-release and later, vertically travelling redstone is no longer affected by precision loss.

1,048,576 - 4,194,303 blocks

Redstone 1048576 dots.png

Between Alpha v1.0.1 and release 1.8 snapshot 14w11b inclusive, redstone wire first begins to distort beyond 1,048,576 blocks. This distortion is rather subtle, and solely affects the dot - other connections are unaffected. In the screenshot, the redstone at the top (which is the smallest) is before 1,048,576 blocks on both axes, and thus appears at its normal size. The bottom redstone, which is beyond this position, appears bigger. The other two dots are beyond this position on only one axis each, and appear slightly rectangular as a result.

4,194,304 - 8,388,607 blocks

Redstone 4194304.png

Beyond 4,194,304 blocks, redstone starts to distort more significantly and in more ways. Notably, single dots are invisible - since at these coordinates, precision can only be half a block, this splits a block's top surface into a 2x2 grid with 9 possible vertices. As the redstone dot is centered onto the block, the vertices of the model are presumably rounded to the center of the block, producing an invisible 0-dimensional result. Corner turns of redstone dust are now somewhat shrunken as to only cover a corner of the block face, and T-shapes are stretched to cover only half of the block's top face. Crosses and lines are unaffected.

8,388,608 - 16,777,215 blocks

Redstone 8388608.png

Redstone rendering degrades further upon another subsequent doubling of the distance. Redstone dots' model vertices are now rounded out to the corners of the block rather than the center, producing an again visible result which now covers the full block face. T-shapes and corner turns now also cover the full block top face. Lines and crosses remain unaffected at this point due to them covering the full top face in the first place.

16,777,216 - 33,554,431 blocks

Redstone 16777216.png

Beyond 16,777,216 blocks, precision loss exceeds one full block, and redstone renders even more oddly as a result. For example, only half (if exceeded on one axis) / a quarter (both axes) of all redstone dust placed here will actually render - the rest, while it still exists, functions and influences the visual connections of redstone that does render, will remain entirely invisible. Of what does render, redstone will be stretched to visually occupy two blocks if over this distance on one axis, or a 2x2 space of blocks if beyond it on two.

Beyond this distance on only one axis, the stretching on each block is as follows:

  • 4n: Invisible
  • 4n+1: Renders, stretched towards the negative direction
  • 4n+2: Renders, stretched towards the positive direction
  • 4n+3: Invisible

For both axes, these effects mix, and therefore only redstone whose coordinates are both 4n+1 and 4n+2 can render.

In versions 14w02a until this effect's fixing, the rendering is as follows:

  • 4n: Invisible
  • 4n+1: Invisible
  • 4n+2: Renders, stretched towards the positive direction
  • 4n+3: Invisible

In Beta 1.8 Pre-release and later, vertically travelling redstone would render as normal regardless of distance, even though horizontally travelling redstone would appear as distorted as any other distorted planar block.

For vertically travelling redstone, depending on the version, it can appear very distant from the block it is climbing. This ranges from the redstone line floating off of its supporting block by a full block, being flush with its surface and z-fighting, or being inside of the block and therefore invisible under usual circumstances (viewing would require x-raying in some capacity, as at the time redstone did not render from its rear). The possible vertically travelling arrangements are as follows:

Going in the positive direction (would display on the negative face of the block it travels up if closer to spawn):

  • 4n: Displays a full block off of the face it climbs
  • 4n+1: Flush with the block face, causing z-fighting
  • 4n+2: Displays inside of the block it climbs - requires x-ray to see
  • 4n+3: Flush with the block face, causing z-fighting

From Alpha v1.0.1 through Beta 1.4_01 inclusive, vertically travelling redstone would also appear stretched. From Beta 1.5 through to Beta 1.7.3 inclusive, it no longer appeared stretched, but still appeared disconnected from its supporting block as described previously. As vertically travelling redstone can only have a line appearence, it would not be able to appear stretched before 16,777,216 blocks, as it would already be taking up the full block face area and no precision would be able to be lost.

33,554,432+ blocks

Beyond every power of two, redstone dust will stretch more and more, and vertically travelling redstone will become more and more disjoint from its intended position in versions where such effects exist, both effects obviously doubling for each integer exponent of 2 surpassed. These effects can only be seen in modded versions, or (in Beta 1.7.3 and prior) via editing coordinates externally and exploiting the spawn chunk glitch (see Java Edition hard limits#Spawn chunk glitch (X/Z: ±524,288–X/Z: ±1,073,741,824)).

Past X/Z: 268,435,456, a single unit of redstone dust renders large enough to cover four chunks at a time, and beyond X/Z: 1,073,741,824, will appear as large as 128 blocks wide. For a redstone dot, this would result in a single pixel being 128/6 = 64/3 = 21.3333333333333... blocks wide.

Were worlds to theoretically function out to the 64-bit limit (X/Z: ±9,223,372,036,854,775,807), a single unit of redstone dust placed at the correct position would be 2.2 trillion blocks wide.

Tripwire and tripwire hooks[]

This section is missing information about more details on mixing offsets.
Please expand the section to include this information. Further details may exist on the talk page.

First affected version: 12w22a
Last affected version: 1.7.10

262,144 - 8,388,607 blocks

Beyond 262,144 blocks on both axes, tripwire string simply stops rendering. Beyond this point on only one axis, it will only stop rendering in the direction perpendicular to the axis it is exceeded on. Of what remains, some subtle z-fighting can be seen.

8,388,608 - 16,777,215 blocks

Tripwire 8388608.png

Things become especially odd for tripwire specifically when precision loss is one full block. The texture ends up becoming ridiculously stretched to cover the entire block face and somewhat visually resembles a shag carpet.

When attached to a tripwire hook, the results vary visually depending on the version being played on. From 12w22a through 13w01b inclusive, it appears effectively identical to the tripwire itself. However, from 13w02a through to 1.7.10, the section attached to the hook has a very thick gray section. This is almost certaintly due to a model change that affected the brightness and shape of tripwire in that same snapshot, making that section of wire less dotty and more linear; stretching that line perpendicularly to itself would create a planar sheet, as opposed to stretching dots which would create lines.

16,777,216+ blocks

After this point, tripwire once again stops rendering perpendicular to the axis of travel.

Pistons[]

First affected version: Beta 1.7
Last affected version: 1.7.10
Note: this section deals with stationary pistons and does not include pistons in motion.

2,097,152 - 4,194,303 blocks

The arm section of a piston begins to distort at this point. If the piston's direction is perpendicular to that of the direction of travel (including vertically facing), the arm will now appear completely flat on that axis. If beyond this point on both axes and extending in a vertical direction, this will result in the arm to appear completely 1-dimensional and therefore invisible.

4,194,304 - 8,388,607 blocks

The above details still apply at this point. Pistons now gain an additional distortion at this point. If it is extending parallel to the direction of travel, it will now appear shorter, and detached from the piston body slightly. At 4,194,303 blocks exactly, the texture on the arm will appear slightly squished if facing in the negative direction (as tested on only one positive axis). Beyond this point, the texture mapping will no longer be squished, but part of the arm will be inside of the head (to compensate for its detachment), which can be seen by clipping inside of it.

8,388,608 - 16,777,215 blocks

Piston arms now become extremely distorted after this point. Arms parallel to the direction of travel still look the same as their 4,194,304+ counterparts, but those which run perpendicularly are dramatically stretched to cover a full block's width. If on both axes, this can cause a vertically extended piston to appear like two stacked full blocks.

16,777,216 - 33,554,431 blocks

The appearence of piston arms is now very dependent on the position of the block itself. If beyond this point on only one axis, pistons which extend parallel to the travel will usually have completely invisible arms (presumably these are reduced to 2D planes which have no texture on the faces anyway due to these parts of the piston arm never being normally visible). It seems that this is always the case for pistons extending in the positive direction. However, for pistons extending in the negative direction, one in every four will have the arm appear stretched to be two full blocks wide. Specifically, the piston must be placed such that the arm extends into block 4n+2.

For arms extending in the two directions perpendicular, the arm will appear completely flat, and either at the very edge of the piston block, or offset from it by a whole block (occurs for pistons at 4n+1)[more information needed].

Effects can be mixed by exceeding this distance on both axes. Vertically facing pistons will obviously always have invisible arms due to them being compressed into being one-dimensional. Other effects can be seen, though - for example, a piston at a coordinate 4x-1 and 4z+1 made to extend towards the negative X direction will result in a thin piston arm stretched to be two blocks wide and offset from the piston by a full block.

Cauldrons and hoppers[]

First affected version: Beta 1.9 Prerelease 2 (cauldron), 13w01a (hopper)
Last affected version: 1.7.10

2,097,152 - 16,777,215 blocks

Between these points, cauldrons and hoppers become very slightly distorted, in that the inner face becomes coplanar with the outer face. This causes the inside of the block to appear slightly larger.

16,777,216 - 33,554,431 blocks

Cauldron and hopper inner face behavior becomes very interesting at this point onwards. Assuming one axis

  • 4n: the internal faces are outright invisible
  • 4n+1: the inner face in the positive direction is missing
  • 4n+2: both inner faces will be offset outwards to adjacent blocks
  • 4n+3: the inner face in the positive direction is missing

Flower pots[]

First affected version: 12w34a
Last affected version: 1.7.10

1,048,576 - 2,097,151 blocks

Beyond this point is where flower pots first become distorted. While not immediately obvious, paying attention to the dirt reveals that more of it is visible than previously. A flower pot at exactly 1,048,576 blocks will only be distorted on the positive half of the pot - the negative half will remain normal. Beyond this point, both the positive and negative halves on the applicable axes will be distorted.

2,097,152 - 4,194,303 blocks

Distortion on flower pots becomes more obvious beyond this point. The internal faces of the pot now are rounded to be closer to the center, rather than slightly farther from it like before. As a result, looking down into the pot allows the sides to be seen out through.

Similar to the previous entry, a pot at exactly 2,097,152 blocks will have the old distortion in the negative half, and the new distortion in the positive half.

It is worth noting for this entry and all subsequent flower pot entries that these internal faces are only rendered from the intended angle and are invisible from behind due to them never being normally seen from behind. This is intended design and is not a distance effect.

4,194,304 - 8,388,607 blocks

The flower pot's internal planes have now been completely ejected from the pot itself, such that there are now two full block pixels between the intended edge of the pot and the new position of the planes.

Similar to the previous entry, a pot at exactly 4,194,304 blocks will have the old distortion in the negative half, and the new distortion in the positive half.

8,388,607 - 16,777,215 blocks

Interestingly, distortion beyond this point is now positionally dependent, despite the precision loss not being greater than a full block at this point. Assuming only one axis exceeds this coordinate:

  • 2n: the internal planes simply appear absent. However, some faces now appear at full brightness where they would usually not. This may mean that the internal faces are offset to coincide with the pot's faces in these cases, as the internal faces are always drawn at full brightness in these versions.
  • 2n+1: pots will have their internal planes outright offset into adjacent blocks.

For mixing offsets, pots at double even coordinates have no inner faces and are fully bright, pots at an odd-even coordinate will have two fully bright faces and two offset faces, and double-odd pots will have all four faces offset (which can all be seen at once).

16,777,216 - 33,554,431 blocks

Distortion increases again beyond this point. Assuming only one axis:

  • 4n: have no visible inside faces and some fully bright outside faces
  • 4n+1: both of the inside faces will be offset in the negative direction
  • 4n+2: have no visible inside faces and some fully bright outside faces
  • 4n+3: both of the inside faces will be offset in the positive direction

Mixing coordinates functions as follows: for pots at double even coordinates, internal faces will be absent and the pot will be completely unaffected by ambient occlusion. At an odd-even coordinate, two outside faces will be fully lit, two inner faces will be absent, and the other two inner faces will be offset to the nearest multiple of 4 block. At a double-odd coordinate, two faces will be offset to one of the two closest multiple of 4 blocks, and the other two will be offset to the other.

Flowing water and flowing lava[]

First affected version: Infdev 2010-06-16
Last affected version: Beta 1.7.3

16,777,216 - 33,554,431 blocks
This section is missing information about Where the side planes show up and where they don't.
Please expand the section to include this information. Further details may exist on the talk page.

As a fluid block's "footprint" always stretches across an entire block face, the effects of precision loss here can only be seen once precision itself can no longer represent blocks (integers) individually.

Interestingly, despite often having angular features, these are not actually lost with the precision loss as one may expect, and are somewhat preserved. However, the angle becomes clearly shallower.

33,554,432+ blocks

Lava can be seen here with a ridiculous width.

As with other distance effects, exceeding each integer power of two will double the error systematically, allowing for fluid sides as long as 128 blocks to be witnessed in semi-vanilla bounds.

Rails, powered rails and detector rails[]

First affected version: Infdev 2010-06-18 (rail), Beta 1.5 (detector rail, powered rail)
Last affected version: Beta 1.7.3

16,777,216 - 33,554,431 blocks
This section is missing information about
  • Where the rails show up and where they don't (assuming same as redstone)
  • Check to see if repeaters behave identically here.
Please expand the section to include this information. Further details may exist on the talk page.

As a rail block's "footprint" always stretches across an entire block face, the effects of precision loss here can only be seen once precision itself can no longer represent blocks (integers) individually.

Beyond this point, a rail block will be stretched along the axes exceeded. Only half (a quarter if on both axes) of all rails placed will render,[verify] with the remaining half still being existent, but not visible.

Sloped rails will become stretched in much the same way as flat rails. If stretched in the direction of vertical travel, this will also result in the angle the rail makes with the terrain becoming shallower, as can be seen in a screenshot below.

Gears and ladders[]

This section of the article is empty.
You can help by adding to it.
This section is missing information about test if these even lose precision the same in the first place.
Please expand the section to include this information. Further details may exist on the talk page.
1,048,576 - 16,777,215 blocks

Fire[]

This section of the article is empty.
You can help by adding to it.

Torches, crops and cross models[]

This section of the article is empty.
You can help by adding to it.

Hitbox issues[]

Fences, fence gates and walls[]

First affected version: Beta 1.9 Prerelease 2 (fences), 12w01a (fence gates), 12w34a (walls)
Last affected version: 13w06a (fences), 15w38a (fence gates), 1.4.3 (walls)

2,097,152 - 8,388,607 blocks

At this point, the hitboxes for fences, gates and walls begin to break. Before this point, pushing into a fence in the positive direction would allow the player to go as far as .07500 blocks into the space the fence occupies; beyond this point, the limit becomes .20000 blocks. It is also possible to easily see inside of walls due to this.

8,388,608 - 16,777,215 blocks

In this bracket, fence and wall hitboxes expand to fill out the entire block they occupy, similarly to how fences and gates were prior to Beta 1.8 Pre-release and release 1.1 respectively. This is obviously due to the integers being the only representable numbers with floats beyond this point.

16,777,216 - 33,554,431 blocks

Fence 16777216 solidplanes.png

This section needs cleanup to comply with the style guide. [discuss]
Please help improve this page. The talk page may contain suggestions.
Reason: Use 4n+x terminology

Hitboxes beyond this point become very strange, and virtually non-existent in some cases. Assuming this distance is exceeded on only one axis and in the positive direction, a fence at a multiple of 4 coordinate will have an extremely thin hitbox at the negative side of the fence. A fence at a coordinate one more than a multiple of 4 will have no hitbox at all, one at an even, non-multiple-of-4 coordinate will again have a thin hitbox at the negative side, and one below a multiple of 4 will have its thin hitbox at the positive side. The image to the right showcases the solid faces approximately marked by signs.

Cakes and cacti[]

First affected version: Alpha v1.0.11 (cacti), Beta 1.2 (cakes)
Last affected version: 15w38a (collision boxes), 15w49a (outline boxes)
Fixing of cake outline box impossible to see due to MC-106300

1,048,576 - 2,097,151 blocks

After 1,048,576 blocks, the first breakdown of hitboxes can be witnessed for cakes and cacti. Previously, their hitboxes would perfectly fit their cuboidal shape, however any placed past this point would experience a minor distortion; the hitboxes would be stretched to a full block width on whatever axis this distance was surpassed on. This also affects their collision boxes - previously pressing against these on their negative-facing side would get a value of .76250, but after this point this value is now .70000, like a full block. Cacti can still cause damage with this expanded hitbox.

As cakes can also be eaten to change their hitbox, partially eaten cakes will also experience hitbox breakdowns.

Before:

After:

2,097,152 - 4,194,303 blocks
4,194,304 - 8,388,607 blocks
8,388,608 - 16,777,215 blocks

Cake 8388608 both axes.png

16,777,215 - 33,554,431 blocks

Beyond this point, the hitboxes of these blocks start to become quite strange. As a block's collision box cannot extend outside of the block space it occupies, it becomes very easy to outright clip through the blocks in several cases. On one axis, the hitbox will either be a plane or stretched to occupy two different blocks at once.

Rendering bugs[]

Infdev-Beta terrain rendering offset/jitter[]

This section needs cleanup to comply with the style guide. [discuss]
Please help improve this page. The talk page may contain suggestions.

First affected version: Infdev 2010-06-24
Last affected version: Beta 1.7.3

Hitbox misalignment, one side effect of the classical trademark rendering offset bug

Many effects are noticeable after traveling millions of blocks away from the center of the map. The first effect that becomes evident from 0624 Infdev to Beta 1.7.3 is the jumpy or stuttering movement of the map. In old versions of Minecraft, when the game renders the map around the player, there are two different versions that are generated, the rendering of the blocks themselves (i.e. entities, how much the block generates) and the visual aspect to the blocks (e.g. the hitbox, block pixels etc.). In Java Edition Beta 1.7 and prior, the visual aspect of world rendering loses precision, resulting in the jumpy movement. The reason the world loses precision in the first place is that the rendering engine uses double-double precision, which determines the position of the world around the player. The rendering engine then uses a floating point integer to determine how far the already rendered blocks move around the player when they move. Unfortunately, this floating point integer cuts the double-double precision number in half, and thus the rendering engine doesn't have enough information to render the terrain correctly, and the information gets cut in half every time the player doubles their distance. Removing the floating text from the rendering engine fixes the stuttering movement.

This jumpy movement is notable even at an X/Z of ±16,384, becoming increasingly noticeable around ±524,288. The intensity of such glitches doubles every time the player passes a coordinate that is a power of two (e.g. 2,097,152 or 4,194,304). After about X/Z 16,777,216, the hitbox is a full block off, which makes placing and destroying blocks almost impossible. The floating point precision errors are no longer noticeable past X/Z 2,147,483,519, as surface textures stop rendering and blocks no longer generate. At the center of the world, the world would be off by only 14194304 (0.000000238...) blocks. Past the 32-bit limit, the world would be off by 256 blocks. For any position between n and 2n, where n is a power of 2, the world is offset by n8388608 blocks, or n524288 block pixels.

At excessive X/Z positions (depends on the operating system and version, but usually occurs between X/Z: ±268,435,456 and ±2,147,483,647, and early versions such as Beta), world render glitches out, resulting in terrain that appears to flicker. This does happen at X/Z: <±268,435,456, but it becomes very noticeable at X/Z: >±268,435,456 and gets worse every power of 2 beyond that. This could most likely be that past X/Z: ±268,435,456 the Minecraft world is 32 blocks off, which is as large as 2 chunks, though it is unconfirmed.

Piston offset/jitter[]

This section of the article is empty.
You can help by adding to it.

While this bug did affect Beta 1.7, it was impossible to notice due to the rest of the world being broken in the same way, such that the two effects would occur in unison. While world rendering was fixed in Beta 1.8, piston tile entity rendering was not, resulting in pistons looking out of place as a result until their fixing.

Infdev 0227 chunk detaching issue[]

This section needs cleanup to comply with the style guide. [discuss]
Please help improve this page. The talk page may contain suggestions.
  • X/Z ±131,072: Chunks begin to shake. This effect doubles for every power of two that the player walked away from the spawn point.
  • X/Z: ±2,097,152: World stops rendering completely at certain angles.

May have technically occurred in earlier game versions, but the world stopped rendering after 2560 blocks out anyway, so it would never have manifested anyway
A similar glitch occurred in snapshot 14w30a/b.

14w30a/b chunk detaching issue[]

This section of the article is empty.
You can help by adding to it.

Interestingly, this bug appears to only manifest with certain hardware. It has been noted with Intel integrated graphics. This bug can also happen in first person. This bug is fixed with VBOs.

Indev/Infdev hitbox rendering issue[]

This section needs cleanup to comply with the style guide. [discuss]
Please help improve this page. The talk page may contain suggestions.
  • Every power of 2 that the player goes, the hitbox of the block that the player is facing becomes more and more distorted.
  • The hitbox becomes increasingly more corrupted and distorted until it disappears entirely at X/Z ±2,147,483,648.
  • X/Z ±2,048: Hitbox begins to subtly lose its shape.

The shape of the hitbox distorting and becoming non-cubic is also possible on some GPUs.

Falling block rendering issue[]

This section of the article is empty.
You can help by adding to it.

The shape of the block distorting and becoming non-cubic is also possible on some GPUs.

Shape of gravel distorting at high distances

Falling block rendering issues at high distances

Gameplay[]

Indev/Infdev entity movement[]

This section needs cleanup to comply with the style guide. [discuss]
Please help improve this page. The talk page may contain suggestions.
  • Every power of 2 that the player goes, it becomes harder and harder to walk along the axis the player is traveling on.
  • At X/Z ±4,194,304, the player falls through the blocks. However, if the player teleports beyond this point they can still stand on the blocks but cannot move along that axis.
  • At X/Z ±8,388,608, the player can no longer stand on the blocks and falls into the void.
  • X/Z ±16,777,216: Blocks are no longer solid; the player falls and hits a layer of lava.

Gallery[]

Fixed bugs[]

Particle errors[]

Mods and map editors[]

Paper JE2 BE2.png
The contents of this section are not supported by Mojang Studios or the Minecraft Wiki.

Up until 1.1, there existed a major bug with the OptiFine mod[50][51][52] which would cause world rendering to completely break when traveling a far enough distance away, with effects manifesting as soon as 10,000 blocks. The effects would appear to get more intense continuously when moving far away from the center of the world, as opposed to having cutoffs every 2n blocks, due to this rendering bug also taking rotation into account (although if the rotation is kept constant and along one axis discrete jumps become noticeable). The bug existed due to the mod undoing vanilla's fix for said bug.

When viewing the Far Lands in a 3D Minecraft map editor, the player encounters errors. In MCEdit, the selection cubes start to distort and the map distorts when viewing. In addition, when the player rotates their view around a selected area, blocks are not lined up right and change how poorly lined up they are at random, making the whole world seem to shake.

References[]

External links[]

Advertisement
