23w06a is the fourth snapshot for Java Edition 1.19.4, released on February 8, 2023,[1] which introduces display entities, /damage command, damage types and tags, and fixes bugs.

Additions[]

Non-mob entities[]

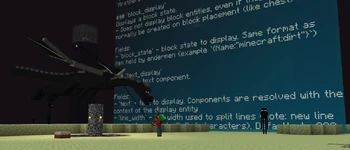

Display entities
  • Including Block Display, Item Display, and Text Display (block_display, item_display, and text_display), for flexible display of blocks, items and text.
    • Like marker (marker), don't tick and have no collisions or physics.
    • Models render at entity position, with normal rotation around X and Y axis (so it can be controlled by teleport commands), but also with additional arbitrary model transform.
  • 2 new data types added, each of them has 2 forms, but only one for saving, as following:
    • rotation
      • Quaternion form (used for saving): array of 4 numbers, describing components (x, y, z, w).
      • Axis-angle form: object with following fields:
        • axis: 3D vector.
        • angle: Angle in radians.
    • transformation: Arbitrary affine transform, composed as following fields and following order:
      • Matrix form: array of 16 numbers, describing row-major matrix.
      • Decomposed form (used for saving): object with following fields:
        • translation: 3D vector.
        • left_rotation: rotation object.
        • scale: 3D vector.
        • right_rotation: rotation object.
  • Some properties of display entites can be interpolated, to create gradual changes over time for clients, instead of instantenous jumps.
    • Display entities keep track of current and previous values of interpolated values:
      • All properties marked as "interpolated" are part of a single interpolation set.
      • Any update to interpolated property will cause all values of interpolation set to be saved as "current".
        • Data command executions that do not change value of property (even if it's present in NBT) do not count as updates.
        • Updates are synchronized to clients at most once per tick, so multiple updates within command will still count as single update.
      • Previous current values are saved as "previous".
      • If interpolation is enabled, entity will transition between "previous" and "current" values over time.
      • Start of interpolation (entity fully in "previous" state) is defined by field interpolation_start (game time, in ticks).
        • Set to -1 to load current game time instead.
      • End of interpolation (entity fully in "current" state) is defined as interpolation_start + interpolation_duration (in ticks).
  • Every entity in family has the following fields:
    • transformation: transformation applied to model (after normal entity orientation). Defaults to identity. Interpolated.
    • billboard: option to control if entity should pivot to face player when rendered:
      • fixed: No rotation (default).
      • vertical Entity can pivot around vertical axis.
      • horizontal Entity can pivot around horizontal axis.
      • center Entity can pivot around center point.
    • brightness: If present, overrides light values used for rendering. Omited by default (which means rendering uses values from entity position). Object has two fields:
      • sky: Value of skylight, from 0 to 15.
      • block: Value of block light, from 0 to 15.
    • view_range: Maximum view range of this entity. Actual distance depends on client-side render distance and entity distance scalling. Default value 1.0 (roughly the same as fireball).
    • shadow_radius: Size of shadow. Defaults to 0 (no shadow). Interpolated.
    • shadow_strength: Strength of the shadow. Controls the opacity of the shadow as a function of distance to block below. Defaults to 1. Interpolated.
    • width, height: Describe size of culling bounding box. Bounding box spans vertically y to y+height and horizontally width/2 in all directions from entity position. If either field is set to 0, culling is disabled. Both default to 0.
    • glow_color_override: Override glow border color. Defaults to 0 (use team color).
  • Besides common fields, these entitiy types also have some exclusive fields for their different usages:
    • Item Display (item_display): Displays a single item stack (stack can be changed with commands by setting slot inventory.0).
      • item: Item stack to display. Same format as in inventory.
        • Example: {id: "minecraft:dirt", Count: 1}
      • item_display: Describes item model transform applied to item (as defined in display section in model JSON)
        • Values: none (default), thirdperson_lefthand, thirdperson_righthand, firstperson_lefthand, firstperson_righthand, head, gui, ground, fixed.
    • Block Display (block_display): Displays a block state, does not display block entities, even if they would normally be created on block placement (like chest).
      • block_state: Block state to display. Same format as item held by endermen.
        • Example: {Name:"minecraft:dirt"}.
    • Text Display (text_display): Displays a text component (backgrounds uses new shader types rendertype_text_background, and rendertype_text_background_see_through).
      • text: Text to display. Components are resolved with the context of the display entity.
      • line_width: Line width used to split lines (note: new line can be also addded with \n characters). Defaults to 200.
      • text_opacity: Opacity (alpha component) of rendered text. Defaults to 255. Interpolated.
      • background: Color of background. Includes alpha channel. Defaults to 0x40000000. Interpolated.
      • default_background: If true, rendering uses default text background color (same as in chat). Defaults to false.
      • shadow: Should text be displayed with shadow. Defaults to false.
      • see_through: Should text be visible through blocks. Defaults to false.
      • alignment: How text should be aligned.
        • Values: center (default), left, right.

Command format[]

Game rule
/damage
  • A new command to apply damage to entities, with following syntaxes:
    • /damage <target> <amount> [<damageType>] [at <location>]
    • /damage <target> <amount> [<damageType>] [by <entity>] [from <cause>]
  • Parameters:
    • target: The entity to damage.
    • amount: Amount of damage to inflict.
    • damageType: The type of damage to inflict.
      • This determines how the damage affects the entity as well as which death message is displayed.
    • location: The location the damage originated at (when no entity caused the damage).
      • For instance, location might represent the location of a bed exploding in the Nether.
    • entity: The entity inflicting the damage.
    • cause: The cause of the damage, in the case of indirect damage.
      • Example: When shot by an arrow, the entity is the arrow projectile while cause might be a skeleton.
/execute
  • Added /execute summon sub-command, with the following syntax:
    • /execute summon <entity> -> execute
  • This sub-command is for summoning new entity and binding context (@s) to it. Meant to simplify entity setup and reduce need for raw NBT editing.

General[]

Data pack
  • Added damage types, which are a new registry.
    • Determines how damage is handled by the game.
    • Includes which attributes the damage has as well as which death message is used when an entity dies due to that type of damage, example:
      {
      	"exhaustion": 0.1,
       	"message_id": "arrow",
      	"scaling": "when_caused_by_living_non_player"
      }

    • Fields:
      • message_id: The message id used for deaths caused by this damage type.
        • Will be combined with other string fragments to form a translation key.
      • exhaustion: The amount of hunger exhaustion caused by this damage type.
      • scaling: Whether this damage type scales with difficulty levels. Possible values:
        • never: Damage is always the same.
        • always: Damage always scales with difficulty.
        • when_caused_by_living_non_player: Damage scales with difficulty if it was caused by a living entity who is not a player.
      • effects: Optional field controlling how damage manifests when inflicted on players. Possible values:
        • hurt (default): The default hurt sound.
        • thorns: Thorns hurt sound.
        • drowning: Drowning sound.
        • burning: A single tick of burning sound.
        • poking: Berry bush poke sound.
        • freezing: Freeze tick sound.
      • death_message_type: Optional field that controls if special death message variants are used. Possible values:
        • default (default): No special death message logic is applied.
        • fall_variants: Show a variant of fall damage death instead of a regular death message, e.g. death.fell.assist.item.
        • intentional_game_design: Show the intentional game design message instead of a regular death message.
    • Damage type tags control many aspects of how damage from different sources are interpreted.
Options
  • Added "Damage Tilt" accessibility option, for controlling the amount of camera shake when being hurt.
  • Added a tooltip in the Key Binds screen that specifies which keybinds are conflicting.
Tag
  • Added following damage type tags:
    • #always_most_significant_fall: contains out_of_world.
    • #always_triggers_silverfish: contains magic.
    • #avoids_guardian_thorns: contains magic.
    • #burns_armor_stands: contains on_fire.
    • #bypasses_armor: contains on_fire, in_wall, cramming, drown, fly_into_wall, generic, wither, dragon_breath, freeze, starve, fall, freeze, stalagmite, magic, indirect_magic, out_of_world, and sonic_boom.
    • #bypasses_effects: contains starve.
    • #bypasses_enchantments: contains sonic_boom.
    • #bypasses_invulnerability: contains out_of_world.
    • #bypasses_resistance: contains out_of_world.
    • #damages_helmet: contains falling_anvil, falling_block, and falling_stalactite.
    • #ignites_armor_stands: contains in_fire.
    • #is_drowning: contains drown.
    • #is_explosion: contains fireworks, explosion, player_explosion, and bad_respawn_point.
    • #is_fall: contains fall, and stalagmite.
    • #is_fire: contains in_fire, on_fire, lava, hot_floor, unattributed_fireball, and fireball.
    • #is_freezing: contains freeze.
    • #is_lightning: contains lightning_bolt.
    • #is_projectile: contains arrow, trident, mob_projectile, unattributed_fireball, fireball, wither_skull, and thrown.
    • #no_anger: contains mob_attack_no_aggro.
    • #no_impact: contains drown.
    • #witch_resistant_to: contains magic, indirect_magic, sonic_boom, and thorns.
    • #wither_immune_to: contains drown.
General
  • Added --pidFile argument to dedicated server command line for printing Process ID (PID) to file.

Changes[]

Blocks[]

Jukebox
Sculk Sensor

Items[]

Shield
  • A sound is now played when a shield is placed into the offhand slot.

Non-mob entities[]

Minecart with Hopper
  • No longer aggravates piglins when opened.

General[]

Create New World
  • Tabs can be switched with the keyboard by pressing Ctrl + Tab ↹ and Ctrl + ⇧ Shift + Tab ↹.
  • Specific tabs can also be navigated to by pressing Ctrl + Tab Number.
  • Added a screen to easily enable/disable experimental features.
    • Can always be found under the "More" tab.
    • In snapshots, a shortcut button can be found under the "Game" tab.
Creative Inventory
  • Added painting variants to "Functional Blocks" tab.
    • Paintings with pre-defined variant will now display author, title and size in description when hovered over.
    • The "Operator Utilities" tab contains the four paintings that are not available in Survival mode.
  • Added fire charge to the "Ingredients" tab.
Data pack
  • Increased data pack version from 11 to 12.
Options
  • Renamed "Notification Display Time" accessibility option to "Notification Time".
  • Texts in options buttons now have a scrolling animation whenever they are too large to fit.
options.txt
  • Removed heldItemTooltips.
Predicate
  • Removed is_projectile, is_explosion, bypasses_armor, bypasses_invulnerability, bypasses_magic, is_fire, is_magic, and is_lightning fields from damage type predicates.
  • A new tags array has been added. Each entry has two fields:
    • id: The ID of a damage type tag.
    • expected: Whether the damage is expected to have or not have the tag for the predicate to match.

Experimental changes[]

Item[]

Trimmed armor
  • Swapped iron and iron_darker palette, then made iron_darker darker overall.
  • Added a darkest pixel to chestplate_trim trim item texture.

Fixes[]

45 issues fixed
From released versions before 1.19
  • MC-12729 – Z-fighting can be seen on leggings and boots worn by entities.
  • MC-145765 – Both "Text Background" settings strings are overflowing the buttons.
  • MC-156443 – In some languages, text is too long and escapes buttons.
  • MC-198874 – Opening a Minecart with Hopper provokes Piglins, even though opening a Hopper doesn't provoke them.
  • MC-209622 – Sculk sensors do not detect item frame / glow item frame interactions.
  • MC-209896 – Sculk sensors are not activated upon placing glowstone into respawn anchors.
  • MC-209907 – Sculk sensors are not activated upon attaching or removing leads from fences.
  • MC-209929 – Sculk sensors are not activated upon filling composters.
  • MC-210276 – Sculk sensors are not activated upon trampling farmland.
  • MC-210294 – Sculk sensors are not activated upon mounting or dismounting any non-biological entities.
  • MC-210334 – Sculk sensors are not activated upon sheep being dyed.
  • MC-210707 – Sculk sensors are not activated upon closing chest boats, chest rafts, or chest minecarts.
  • MC-210715 – Sculk sensors are not activated upon attaching or removing leads from entities.
  • MC-212501 – Sculk sensors are not activated upon collecting books from lecterns.
  • MC-213803 – Sculk sensors are not activated upon harvesting glow berries from cave vines.
  • MC-215767 – Sculk sensors do not detect turtles laying an egg.
  • MC-233972 – Text can appear outside of buttons in the key binds menu when assigning keys to functions or when multiple functions are assigned to the same key.
  • MC-236988 – Sculk sensors are not activated upon using shears on cave/twisting/weeping vines or kelp.
  • MC-237450 – The "Simulation Distance" text can appear outside of its slider.
  • MC-237879 – Sculk sensors are not activated upon villagers working with composters.
  • MC-249878 – Text can appear outside of the "Device" button within the music and sound options menu.
From 1.19
  • MC-251917 – No gear equipping sound or subtitle when a shield is placed into the offhand slot.
  • MC-251934 – Sculk sensors are not activated upon frogs laying frogspawn.
  • MC-252434 – Sculk sensors are activated when interacting with fences while holding leads.
From 1.19.2
  • MC-257558 – Sculk sensors are activated upon interacting with minecarts with hoppers.
  • MC-257873 – Swapping an armor piece with an armor piece of the same type doesn't play its equipping sound.
  • MC-258156 – The Warden does not deal the same amount of damage to the player and entities in difficult mode.
From 1.19.3
  • MC-258622 – Fire charge isn't in the Ingredients tab in creative inventory.
From the 1.19.4 development versions
  • MC-259193 – The "Notification Display Time" text can appear outside of its slider.
  • MC-259195 – Using /ride on an entity in another dimension causes client/server desync.
  • MC-259197 – The damage tilt effect isn't accessible-friendly.
  • MC-259221 – Using the /ride command on invalid entities teleports players to their position.
  • MC-259224 – Blocking attacks with shields causes the damage tilt to play and red damage tint to show.
  • MC-259227/execute if loaded <pos> alone always fails.
  • MC-259233 – Argument error messages for low values are inconsistently spelled.
  • MC-259245 – An enderman ridden with /ride constantly teleports if the player looks at the enderman's eyes.
  • MC-259247 – The /execute on owner sub-command does not select the owner of a horse, donkey, llama, or mule.
  • MC-259360 – The selectWorld.mapFeatures.info string is missing a comma after the word "Shipwrecks".
  • MC-259432 – Single missing pixel in chestplate_trim item texture.
  • MC-259442 – Can't shift click items into second anvil slot.
  • MC-259454 – Loot table for hoglin stable chests uses the loot table for bridge chests instead.
  • MC-259468empty_slot_amethyst_shard does not show in Smithing Table slot.
From the previous development version
  • MC-259599 – Curse of Binding armor can be removed by swapping armor with right click in hotbar.
  • MC-259635 – The color palettes for iron and iron_darker trims are flipped.
  • MC-259640 – The lightest three colors of iron and iron_darker color palettes are identical.

Video[]

Video made by slicedlime:

References[]

  1. "Minecraft Snapshot 23w06a" – Minecraft.net, February 8, 2023
Advertisement
